New 60W Monocrystalline 24V Solar Panel

Name: New 60W Monocrystalline 24V Solar Panel
SKU: NPA60S-24J
Price: 87.99 USD
Availability: InStock

SKU: NPA60S-24J

Product Rating:

Current Stock:

Technical Parameters

Description

Newpowa's New 60W 24V Monocrystalline High-efficiency Solar Panel is ideal for bringing power to applications when away from the grid. It is commonly used in RV, marine, gate opener, boat, camping and many other off-grid applications.

New design:

Smaller in size, same output, higher efficiency compared with other brands.

Key Features

60W/24V monocrystalline high-efficiency solar panel
High performance cells encapsulated in EVA (ethylene-vinyl-acetate)
Nominal 24V DC for standard output
Heavy-duty anodized frame with pre-drilled holes for mounting
Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa)
High-transparent, low iron tempered glass
Durable TPT back sheet - dissipates heat to ensure better panel performance and lifespan

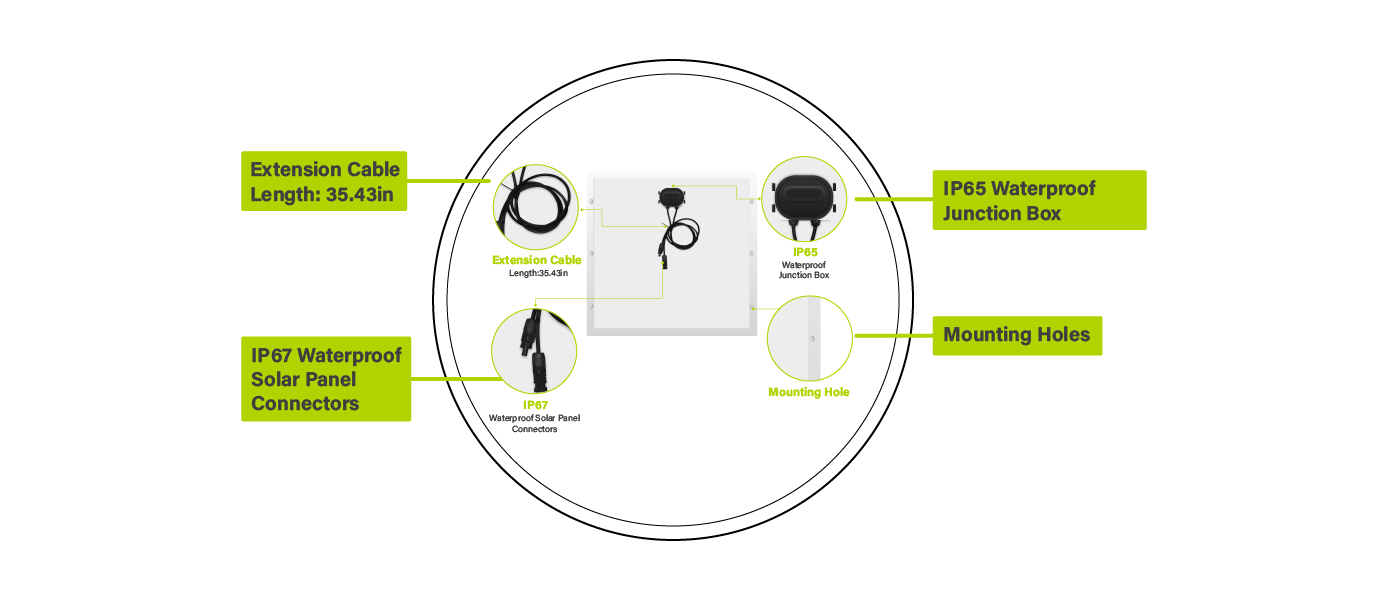

Pre-installed bypass diodes inside junction box that minimize power drops caused by shading
Pre-attached 3ft wire with connectors (M/F)

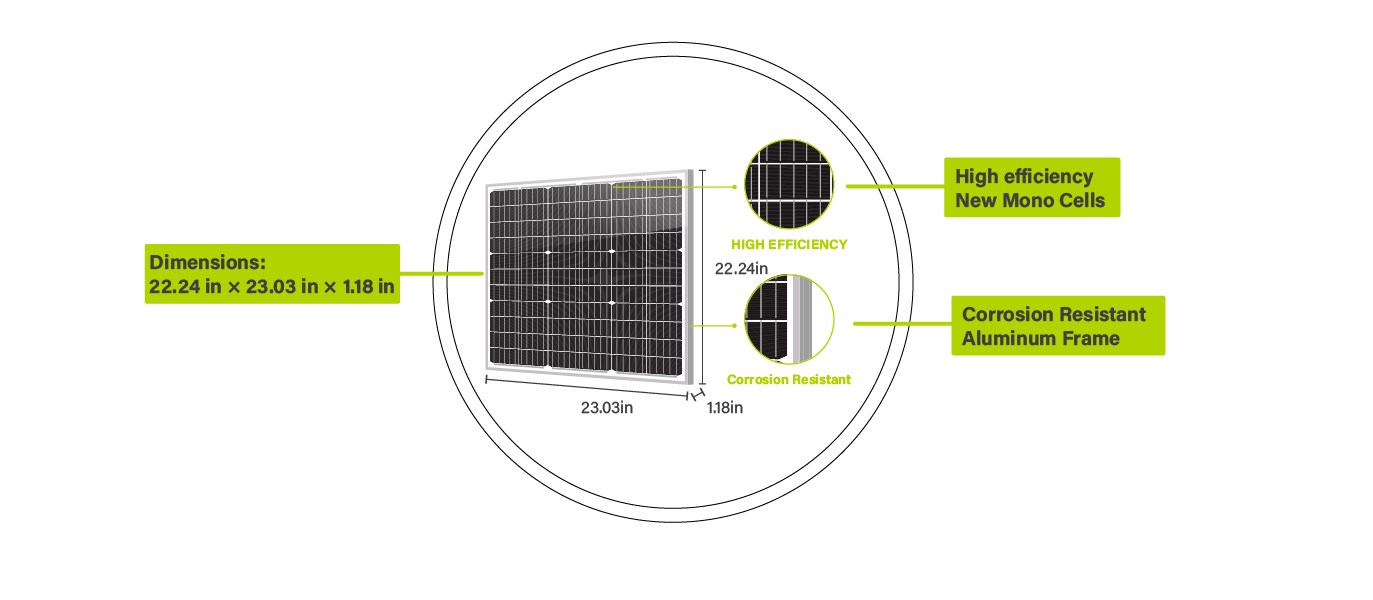

Product dimensions: 22.24 x 23.03 x 1.18 in (565 x 585 x 30 mm)
Compatible mount brackets (sold separately): NPB-UZ, NPB-120P, NPB-100T

TECH & SPECS
Warranty
Shipping Policy
Downloads

Product Code NPA60S-24J
Maximum power (Pmax) 60W
Voltage at Pmax (Vmp) 38.16V
Current at Pmax (Imp) 1.58A
Open-circuit voltage (Voc) 44.59V
Short-circuit current (Isc) 1.68A
Temperature coefficient of Voc -(80±10)mV/°C

Temperature coefficient of Isc (0.065±0.015)%/ °C
Temperature coefficient of power -(0.5±0.05)%/ °C
NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 47±2°C
Operating temperature -40°C to 85°C
Maximum system voltage 1000V DC
Power tolerance ± 3%

2-Year Limited Material and Parts Workmanship Warranty
10-Year 90% Output Warranty
25-Year 80% Output Warranty

Newpowa offers free shipping for all domestic orders (48 states). Your order will be shipped within 1-2 business days from the date payment is cleared plus transit time, ships from Southern California. Please note that we are unable to ship to PO Box addresses for any size of solar panels. Upon shipment, a tracking number will be provided.
