New 20W Solar Battery Maintainer Kit

Name: New 20W Solar Battery Maintainer Kit
SKU: NPA20S-12TCK
Price: 59.89 USD
Availability: InStock

SKU: NPA20S-12TCK

Product Rating:

Current Stock:

Technical Parameters

Description

Newpowa's NPA20S-12TCK trickle charger kit helps keep your battery maintained with the use of solar power. This 20W kit comes with all accessories needed to plug into your 12V battery. With convenient Anderson connection and other 2 options for cigarette lighter and alligator clips,It is perfect for RVs, fences, boats, and many more applications to keep your batteries from going flat.

Kit Includes

1x 20W High Efficiency Monocrystalline Solar panel with pre-attached 3ft Anderson connector.
1x Anderson to Alligator Clip Cable
1x Anderson to Cigarette lighter adapter Cable
8x Suction cup

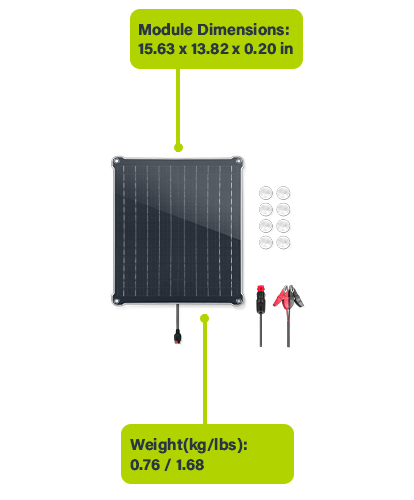

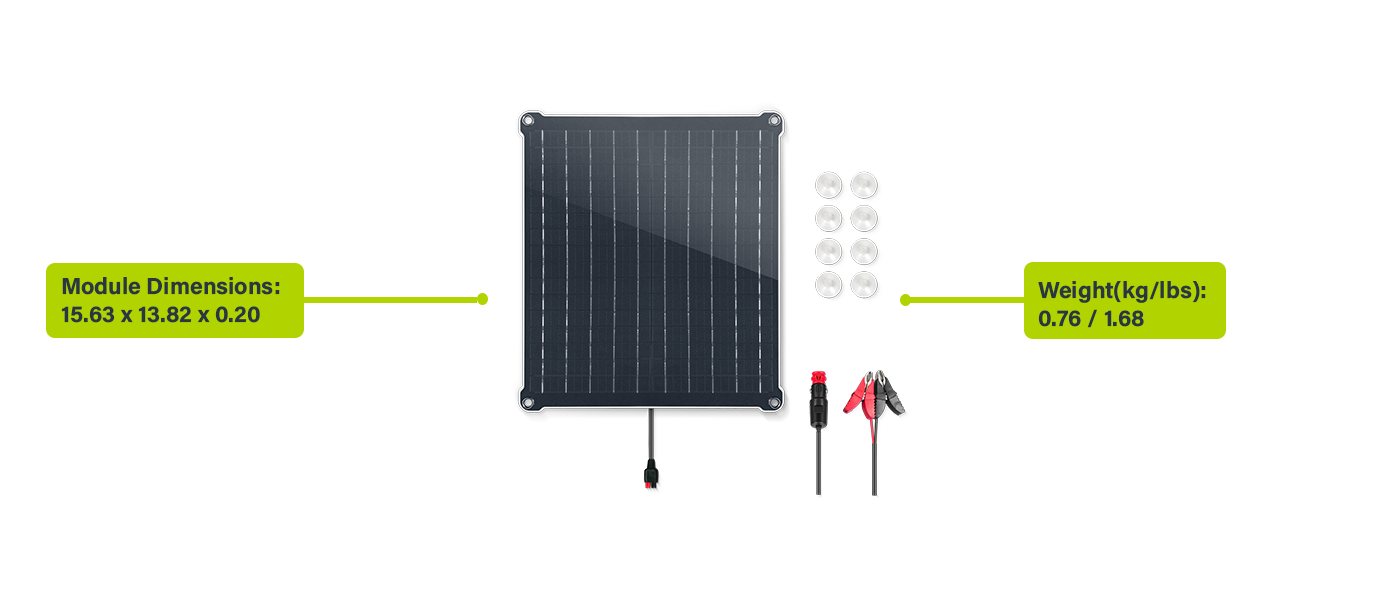

Product dimension: 15.63x13.82x0.20in (397 x 351 x 5 mm)
Net weight: 1.68lbs

TECH & SPECS
Warranty
Shipping Policy
Downloads

Product Code NPA20S-12TCK
Maximum power (Pmax) 20W
Voltage at Pmax (Vmp) 18.00V
Current at Pmax (Imp) 1.11A
Open-circuit voltage (Voc) 21.60V
Short-circuit current (Isc) 1.16A
Temperature coefficient of Voc -(80±10)mV/°C

Temperature coefficient of Isc (0.065±0.015)%/ °C
Temperature coefficient of power -(0.5±0.05)%/ °C
NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 47±2°C
Operating temperature -40°C to 85°C
Maximum system voltage 1000V DC
Power tolerance ± 3%

Solar Panel:

2-Year Limited Material and Parts Workmanship Warranty
10-Year 90% Output Warranty
25-Year 80% Output Warranty

Other Accessories:

1-Year Limited Material and Parts Workmanship Warranty

Newpowa offers free shipping for all domestic orders (48 states). Your order will be shipped within 1-2 business days from the date payment is cleared plus transit time, ships from Southern California. Please note that we are unable to ship to PO Box addresses for any size of solar panels. Upon shipment, a tracking number will be provided.
