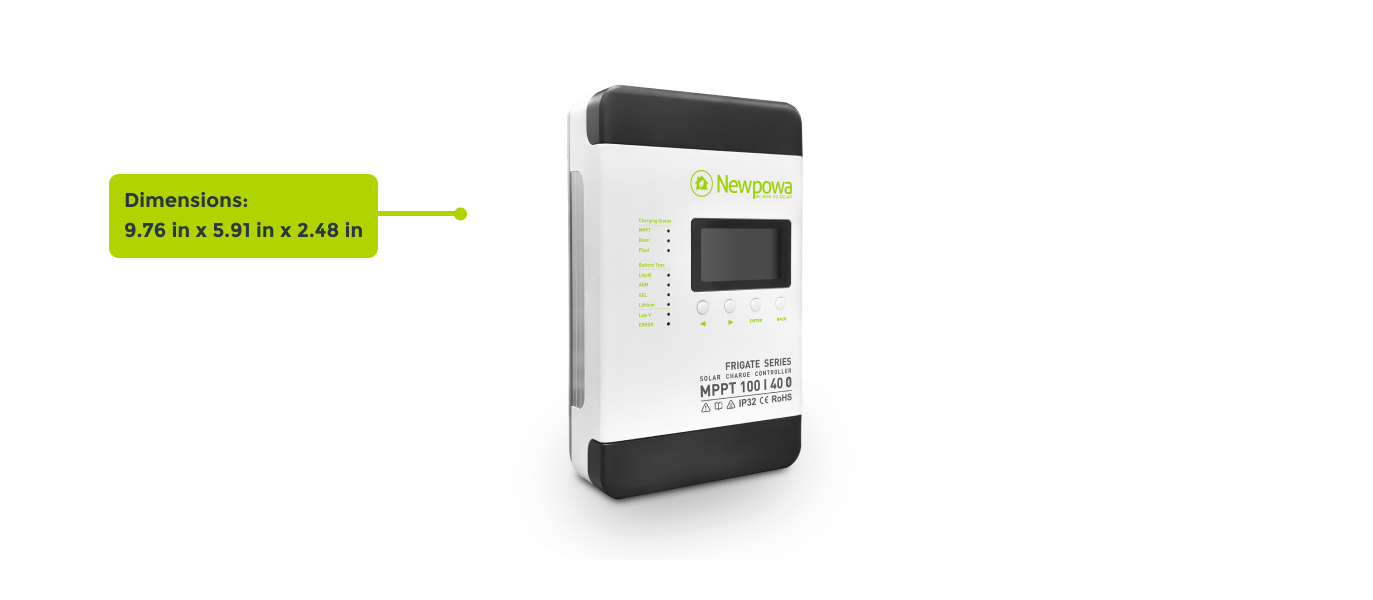

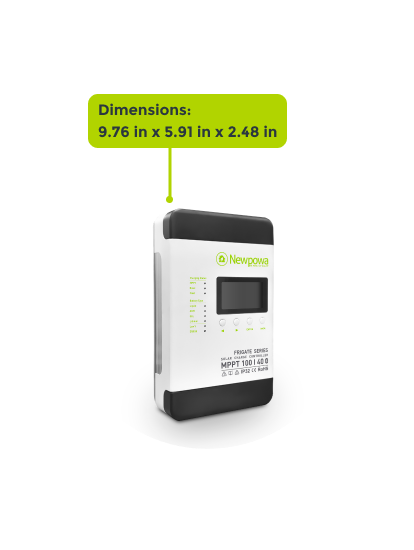

Frigate 40A MPPT Solar Charge Controller

Name: Frigate 40A MPPT Solar Charge Controller
SKU: NPR-FG40-24M
Price: 149.99 USD
Availability: OutOfStock

SKU: NPR-FG40-24M

Product Rating:

Current Stock:

Technical Parameters

Description

Newpowa's Frigate 40A Solar Charge Controller with Maximum Power Point Tracking (MPPT) technology maintains compatibility with 12 and 24V systems. With up to 98% charge conversion efficiency, it ensures maximum power point solar charging that gets more energy to your battery bank. MPPT battery charging can greatly increase the lifetime of your battery and has various unique functions and easy-to-use features. It also has an LCD screen that can easily show you its operating data and working conditions.

Key Features

12/24V DC automatically identifies system voltage
Charge conversion efficiency up to 98%
Industry-leading S-shaped thermal heat sink fins for effective cooling
Built-in Bluetooth capabilities
4 Stages of Charging: MPPT, Boost, Equalization, and Float
And much more!

TECH & SPECS
Warranty
Shipping Policy
Downloads

Product Code NPR-FG40-24M
Max solar/Load current 40A
System Voltage 12V/24V auto
Boost voltage 14.0~14.8V/28.0~29.6V @25°C (default:14.5/29V)
Equalization voltage 14.0~15.0V/28.0~30.0V @25°C (default:14.8/29.6V)
Float voltage 13.0~14.5V/26.0~29.0V @25°C (default:13.7/27.4V)

Overcharge protect 15.8/31.3V
Max volt on Bat. terminal 35V
Battery type Gel, AGM, Liquid, Lithium (default: Gel)
Dimensions/Weight 248 * 150 * 63 mm / 830g
Ambient temperature -4 ~ +131°F

2-Year Limited Material and Parts Workmanship Warranty

Newpowa offers free shipping for all domestic orders (48 states). Your order will be shipped within 1-2 business days from the date payment is cleared plus transit time, ships from Southern California. Please note that we are unable to ship to PO Box addresses for any size of solar panels. Upon shipment, a tracking number will be provided.
