30W 12V Monocrystalline Waterproof Solar Kit

SKU: NPA30S-12I Kit waterproof

Product Rating:

Description

Newpowa's NPA30S-12I KIT waterproof trickle charger kit helps keep your battery maintained with the use of solar power. This 30W kit comes with all accessories needed to plug into your 12V battery. It is perfect for RVs, fences, boats, and many more applications to keep your batteries from going flat.

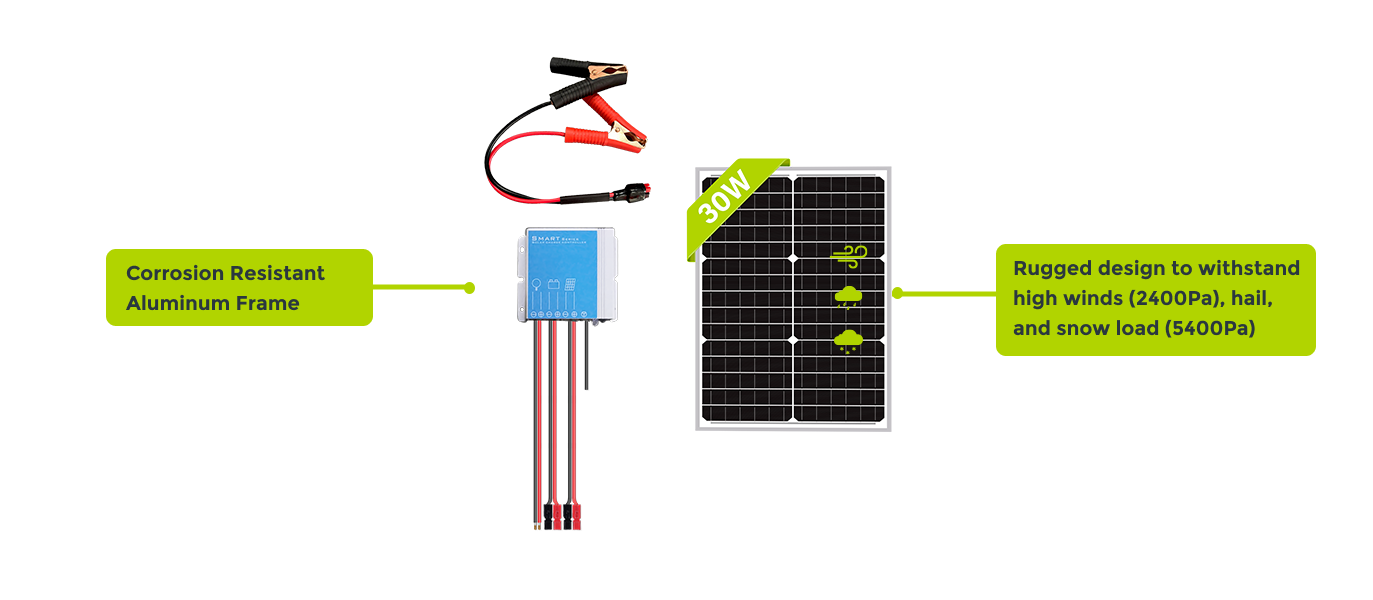

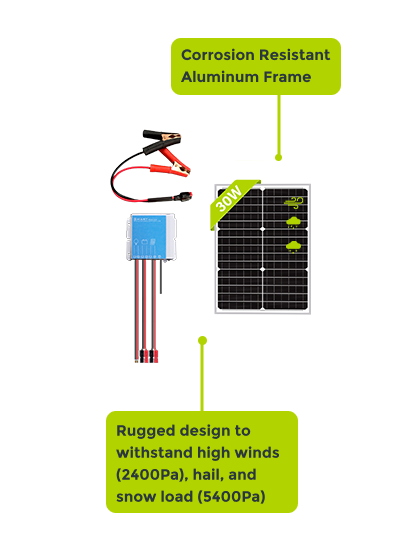

Kit Includes

  • 1x 30W 24V High efficiency Monocrystalline Solar panel with pre-attached 8ft cables and Anderson connectors. (NPA30S-12I)
  • 1x 10A waterproof PWM Smart Charge controller with pre-attached 2ft cable with Anderson connectors(solar panel), 2ft cable with bare ends(load), 2ft cable with Anderson connectors(battery).
  • 1x battery clamps with 11.8 inch length high copper wire that connect controller to battery. (SAE05)
  • Product Code NPA100S-12SFM
  • Maximum power (Pmax) 100W
  • Voltage at Pmax (Vmp) 20.20V
  • Current at Pmax (Imp) 4.96A
  • Open-circuit voltage (Voc) 24.40V
  • Short-circuit current (Isc) 5.31A
  • Temperature coefficient of Voc -(80±10)mV/°C
  • Temperature coefficient of Isc (0.065±0.015)%/ °C
  • Temperature coefficient of power -(0.5±0.05)%/ °C
  • NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 47±2°C
  • Operating temperature -40°C to 85°C
  • Maximum system voltage 1000V DC
  • Power tolerance ± 3%
  • Maximum Series Fuse Rating 15A

Solar Panel:

  • 2-Year Limited Material and Parts Workmanship Warranty
  • 10-Year 90% Output Warranty
  • 25-Year 80% Output Warranty

Charge Controller:

  • 1-Year Limited Material and Parts Workmanship Warranty

Other Accessories:

  • 1-Year Limited Material and Parts Workmanship Warranty

Newpowa offers free shipping for all domestic orders (48 states). Your order will be shipped within 1-2 business days from the date payment is cleared plus transit time, ships from Southern California. Please note that we are unable to ship to PO Box addresses for any size of solar panels. Upon shipment, a tracking number will be provided.
